Anatomy of a DevOps Orchestration Engine: (II) Architecture

MaestroDev logo

Previously: (I) Workflow

Maestro architecture is basically defined by a master server and multiple agents, written in Java and Ruby (JRuby) for the backend and JavaScript for the frontend using AngularJS, and integrating several open source services. It is quite heterogeneous, with multiple languages, build tools, packages,… using the best tool for the job in each part of the stack.



The master services include

  • Maestro REST API
  • End user web interface
  • Composition Execution Engine (LuCEE)
  • ActiveMQ for STOMP messaging
  • PostgreSQL (or MySQL)
  • MongoDB

Maestro REST API

The REST API is a webapp written in Java, using Spring, packaged with a Jetty server. It is documented with Swagger annotations that generate a really nice web interface automatically that allows trying all the operations from the browser.

It handles caching, security, based on LDAP or database records, and delegates to the Composition Execution Engine (LuCEE) typically through LuCEE REST API but also via STOMP messaging to avoid continuous polling.

It also implements handlers to execute compositions from Github, Git, SVN,… on commit callbacks.

End user web interface

The end user UI is written in AngularJS using the AngularJS Bootstrap components and Less stylesheets. It connects to the REST API, so everything that can be done through the webapp can also be automated using the REST API (automation, automation, automation!). I have found Angular really nice to work with besides the service, factory, provider,… complicated abstractions, with good modularity and the ability to reuse third party plugins.

Built with Maven and Grunt (better for the Javascript parts), using Bower to manage all the Javascript dependencies (angular core, bootstrap, ladda button spinner,…), and Karma + PhantomJS, for headless UI tests without needing a real browser.

Composition Execution Engine (LuCEE)

LuCEE is a webapp that manages the execution of compositions, sending/receiving work to/from the agents through ActiveMQ STOMP queues, and storing state in the PostgreSQL database. LuCEE uses the Ruote workflow engine for work scheduling, and manages the compositions queue and agent routing, so basically checks what compositions need to be executed and decides in what agent to execute them, based on composition requirements, free agents, and other factors ie. prioritizing previously used agents that would likely have a cached copy of sources and dependencies to speed things up.

It is written in Ruby, it was quick to implement a first version, with a simple REST API using Sinatra and a STOMP connector to send messages to the Maestro REST webapp through ActiveMQ.

It is packaged as a JRuby war with Warbler, and both LuCEE and the REST API wars are run in the same Jetty server, all packaged as an RPM for easier deployment.


ActiveMQ handles all the comunication between LuCEE, the REST API webapp, and the agents using multiple STOMP queues. All the comunication between LuCEE and agents such as workloads, agent output, agent status,… is sent over a queue so it can be easily scaled across a high number of agents.

LuCEE also pushes changes in the database to the REST API webapp so it can update the caches without needing continuous polling.


LuCEE uses PostgreSQL (or MySQL or any other SQL database using Ruby Datamapper) as main storage to save compositions, projects, tasks,… The SQL database is also used by the REST API webapp to store permissions and user data when not using LDAP.


We found that in order to do more complex dashboards and reports we needed to store all sort of unstructured data from the plugins, from run time or status to anything that a plugin developer may want such as GitHub payload data received or test stacktrace. That data is sent by the agents to LuCEE and then stored in MongoDB, and can be queried directly (all your data belong to you) or through a reporting pane in the webapp.

Next: Agent architecture

Anatomy of a DevOps Orchestration Engine: (I) Workflow

MaestroDev logoAt MaestroDev we have been building what may be called, for lack of a better name, a DevOps Orchestration Engine, and is long overdue to talk about what we have been doing there and most importantly, how.

The basics of the application is to tie together the different systems involved in a Continuous Delivery cycle: Continuous Integration server, SCM, build tools, packaging tools, cloud resources, notification systems,… and streamline the process through these different tools. So it hooks into a bunch of popular tools to orchestrate interactions between them, an example:

Screen Shot 2014-07-11 at 11.20.12 AM

This workflow, or as we call it, composition, will

  1. download a war file from a Maven repository (previously built by Jenkins)
  2. start an Amazon EC2 instance with Tomcat preinstalled
  3. deploy the war
  4. checkout the acceptance tests from Git
  5. run some tests with Maven (Selenium tests using SauceLabs) against that instance
  6. wait for an user to confirm before moving to the next step (to record the human approval or to do some extra manual tests if needed)
  7. destroy the Amazon EC2 instance

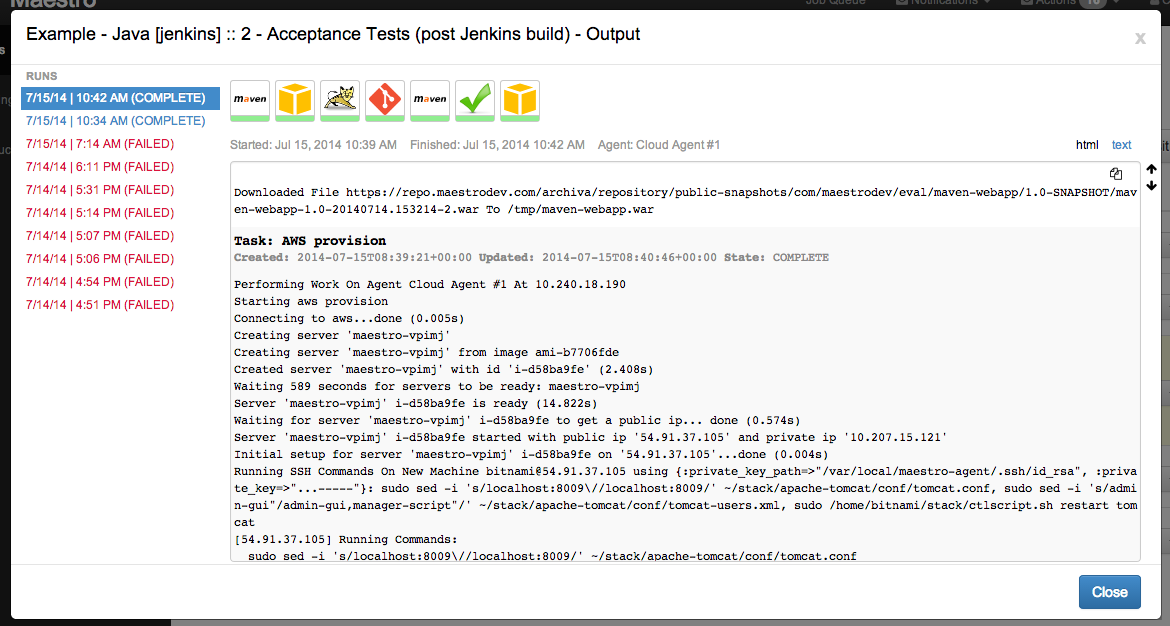

Maestro provides a nice web UI that gives visibility over the composition execution and an aggregated log from all the tools that run during the composition in a single place.

Screen Shot 2014-07-15 at 10.42.42 AM


But the power comes with the combination of compositions together, as there are tasks for typical flows, such as running forking and joining compositions, call another composition in case of a failure, or waiting for a composition to finish.

Screen Shot 2014-07-11 at 11.19.54 AM

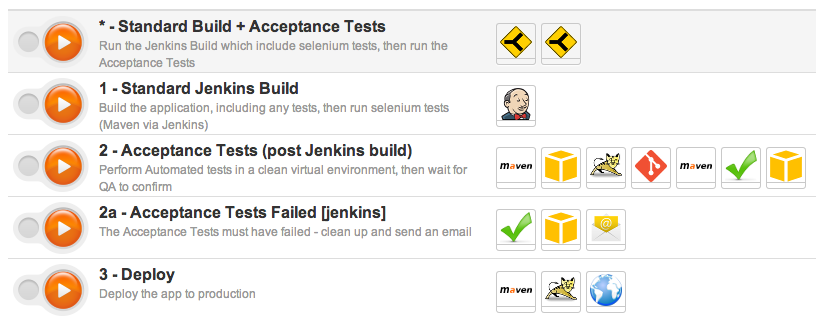

Here we have a more complex setup with five compositions tied together.

  • * – A composition that calls compositions 1 and 2.
  • 1 – A Jenkins build
  • 2 – The acceptance tests composition mentioned before
  • 2a – Notification composition in case the acceptance tests fail
  • 3 – Deployment to production

So you can see that compositions are not just limited to build, test, deploy. The tasks can be combined as needed to build your specific process.

Tasks are contributed by plugins, easily written in Ruby or Java, and define what fields are needed in the UI and what to do with those fields and the composition context. Maestro includes a lot of prebuilt tasks, publicly available on GitHub, from executing shell scripts to Jenkins job creation or Amazon Route 53 record management, but anything.

All the tasks share a common context and use sensible defaults, so if the scm checkout path is not defined it creates a specific working directory for the composition, and that is reused by the Maven, Ant,… plugins to avoid copying and pasting the fields. That’s also how a EC2 deprovision task doesn’t need any configuration if there was a provision task before in the composition, it will just deprovision those instances started previously in the composition by default.

You can take a look at our Maestro public instance, showing some examples and builds of public projects, mostly Puppet modules that are automatically built and deployed to the Puppet Forge, and Maestro plugins build and release compositions. In next posts I’ll be talking about the technologies used and distributed architecture of Maestro.

Next: (II) Architecture

Writing on InfoQ about DevOps

infoqA few weeks ago I’ve started to write news posts at InfoQ, about DevOps, or anything remotely close, that’s the good thing about DevOps meaning something different depending on who you ask ;)

I’d like to write more here too, I have some post ideas about Docker, Puppet, IoT, MQTT,… let’s see if I find the time

Security Testing Using Infrastructure-As-Code

Agile RecordArticle originally published at Agile Record magazine Issue #17 Security Testing in an Agile Environment. Can be downloaded for free as a PDF.

Security Testing Using Infrastructure-As-Code

Infrastructure-As-Code means that infrastructure should be treated as code – a really powerful concept. Server configuration, packages installed, relationships with other servers, etc. should be modeled with code to be automated and have a predictable outcome, removing manual steps prone to errors. That doesn’t sound bad, does it?

The goal is to automate all the infrastructure tasks programmatically. In an ideal world you should be able to start new servers, configure them, and, more importantly, be able to repeat it over and over again, in a reproducible way, automatically, by using tools and APIs.

Have you ever had to upgrade a server without knowing whether the upgrade was going to succeed or not for your application? Are the security updates going to affect your application? There are so many system factors that can indirectly cause a failure in your application, such as different kernel versions, distributions, or packages.

When you have a decent set of integration tests it is not that hard to make changes to your infrastructure with that safety net. There are a number of tools designed to make your life easier, so there is no need to tinker with bash scripts or manual steps prone to error.

We can find three groups of tools:

  • Provisioning tools, like Puppet or Chef, manage the configuration of servers with packages, services, config files, etc. in a reproducible way and over hundreds of machines.
  • Virtual Machine automation tools, like Vagrant, enable new virtual machines to be started easily in different environments, from virtual machines in VirtualBox or VMware to cloud providers such as Amazon AWS or Rackspace, and then provision them with Puppet or Chef.
  • Testing tools, like rspec, Cucumber, or Selenium, enable unit and integration tests to be written that verify that the server is in a good state continuously as part of your continuous integration process.


Learning Puppet can be a tedious task, such as getting up the different pieces (master, agents), writing your first manifests, etc. A good way to start is to use Vagrant, which started as an Oracle VirtualBox command line automation tool, and allows you to create new VMs locally or on cloud providers and provision them with Puppet and Chef easily.

Vagrant projects are composed of base boxes, specifically configured for Vagrant with Puppet/Chef, vagrant username and password, and any customizations you may want to add, plus the configuration to apply to those base boxes defined with Puppet or Chef. That way we can have several projects sharing the same base boxes where the Puppet/Chef definitions are different. For instance, a database VM and a web server VM can both use the same base box, i.e. a CentOS 6 minimal server, and just have different Puppet manifests. When Vagrant starts them up it will apply the specific configuration. That also allows you to share boxes and configuration files across teams. For instance, one base box with the Linux flavor can be used in a team, and in source control we can have just the Puppet manifests to apply for the different configurations that anybody from Operations to Developers can use. If a problem arises in production, a developer can quickly instantiate a equivalent environment using the Vagrant and Puppet configuration, making a different environment’s issues easy to reproduce.

There is a list of available VMs or base boxes ready to use with Vagrant at, but you can build your own and share it anywhere. For VirtualBox they are just (big) VM files that can be easily built using VeeWee ( or by changing a base box and rebundling it with Packer (


Once you have installed Vagrant ( and VirtualBox ( you can create a new project.

Vagrant init will create a sample Vagrantfile, the project definition file that can be customized.

$ vagrant init myproject

Then in the Vagrantfile you can change the default box settings and add basic Puppet provisioning. = "CentOS-6.4-x86_64-minimal"
config.vm.box_url = ""

# create a virtual network so we can access the vm by ip "private_network", ip: ""
config.vm.hostname = "qa.acme.local"
config.vm.provision :puppet do |puppet|
  puppet.manifests_path = "manifests"
  puppet.manifest_file = "site.pp"
  puppet.module_path = "modules"

In manifests/site.pp you can try any puppet code, i.e. create a file

node 'qa.acme.local' {
  file { '/root/secret':
  mode => '0600',
  owner => 'root',
  content => 'secret file, for root eyes only',

Vagrant up will download the box the first time, start the VM, and apply the configuration defined in Puppet.

$ vagrant up

vagrant ssh will open a shell into the box. Under the hood, vagrant is redirecting a host port to vagrant box 22.

$ vagrant ssh

If you make any changes to the Puppet manifests you can rerun the provisioning step.

$ vagrant provision

The vm can be suspended and resumed at any time

$ vagrant suspend
$ vagrant resume

and later on destroyed, which will delete all the VM files.

$ vagrant destroy

And then we can start again from scratch with vagrant up getting a completely new vm where we can make any mistakes!


In Puppet we can configure any aspect of a server: packages, files, permissions, services, etc. You have seen how to create a file, now let’s see an example of configuring Apache httpd server and the Linux iptables firewall to open a port.

First we need the Puppet modules to manage httpd and the firewall rules to avoid writing all the bits and pieces ourselves. Modules are Puppet reusable components that you can find at the Puppet Forge ( or typically in GitHub. To install these two modules into the vm, run the following commands that will download the modules and install them in the /etc/puppet/modules directory.

vagrant ssh -c "sudo puppet module install --version 0.9.0 puppetlabs/apache"
vagrant ssh -c "sudo puppet module install --version 0.4.2 puppetlabs/firewall"

You can find more information about the Apache ( and the Firewall ( modules in their Forge pages. We are just going to add some simple examples to the manifests/site.pp to install the Apache server with a virtual host that will listen in port 80.

node 'qa.acme.local' {

  class { 'apache': }

  # create a virtualhost

  apache::vhost { "${::hostname}.local":
    port => 80,
    docroot => '/var/www',

Now if you try to access this server in port 80 you will not be able to, as iptables is configured by default to block all incoming connections. Try accessing (the ip we configured previously in the Vagrantfile for the private virtual network) and see for yourself.

To open the firewall, we need to open the port explicitly in the manifests/site.pp by adding

firewall { '100 allow apache':
  proto => 'tcp',
  port => '80',
  action => 'accept',

and running vagrant provision again. Now you should see Apache’s default page in

So far we have created a virtual machine where the apache server is automatically installed and the firewall open. You could start from scratch at any time by running vagrant destroy and vagrant up again.


Let’s write some tests to ensure that everything is working as expected. We are going to use Ruby as the language of choice.

Unit testing with rspec-puppet

rspec-puppet ( is a rspec extension that allows to easily unit test Puppet manifests.

Create a spec/spec_helper.rb file to add some shared config for all the specs

require 'rspec-puppet'

RSpec.configure do |c|
  c.module_path = 'modules'
  c.manifest_dir = 'manifests'

and we can start creating unit tests for the host that we defined in Puppet.

# spec/hosts/qa_spec.rb

require 'spec_helper'

describe 'qa.acme.local' do

  # test that the httpd package is installed

  it { should contain_package('httpd') }

  # test that there is a firewall rule set to 'accept'

  it { should contain_firewall('100 allow apache').with_action('accept') }

  # ensure that there is only one firewall definition

  it { should have_firewall_resource_count(1) }


After installing rspec-puppet gem install rspec-puppet, you can run rspec to execute the tests.


Finished in 1.4 seconds

3 examples, 0 failures


Integration testing with Cucumber

Unit testing is fast and can catch a lot of errors quickly, but how can we check that the machine is actually configured as we expected?

Let’s use Cucumber (, a BDD tool, to create an integration test that checks whether a specific port is open in the virtual machine we started.

Create a features/smoke_tests.feature file with:

Feature: Smoke tests
Smoke testing scenarios to make sure all system components are up and running.

Scenario: Services should be up and listening to their assigned port
Then the "apache" service should be listening on port "80"

Install Cucumber gem install cucumber and run cucumber. The first run will output a message saying that the step definition has not been created yet.

Feature: Smoke tests
Smoke testing scenarios to make sure all system components are up and running.

Scenario: Services should be up and listening to their assigned port # features/smoke_tests.feature:4
Then the "apache" service should be listening on port "80" # features/smoke_tests.feature:5

1 scenario (1 undefined)

1 step (1 undefined)


You can implement step definitions for undefined steps with these snippets:

Then(/^the "(.*?)" service should be listening on port "(.*?)"$/) do |arg1, arg2|
  pending # express the regexp above with the code you wish you had

So let’s create a features/step_definitions/tcp_ip_steps.rb file that implements our service should be listening on port step by opening a TCP socket.

Then /^the "(.*?)" service should be listening on port "(.*?)"$/ do |service, port|
  host = URI.parse(ENV['URL']).host
    s =, port)
    rescue Exception => error
    raise("#{service} is not listening at #{host} on port #{port}")

And rerun Cucumber, this time using an environment variable URL to specify where the machine is running, as used in the step definition URL= cucumber.

Feature: Smoke tests
Smoke testing scenarios to make sure all system components are up and running.

Scenario: Services should be up and listening to their assigned port # features/smoke_tests.feature:4
Then the "apache" service should be listening on port "80" # features/step_definitions/tcp_ip_steps.rb:1

1 scenario (1 passed)

1 step (1 passed)


Success! The port is actually open in the virtual machine.

Wash, rinse, repeat

This was a small example of what can be achieved using Infrastructure-As-Code and automation tools such as Puppet and Vagrant combined with standard testing tools like rspec or Cucumber. When a continuous integration tool like Jenkins is thrown into the mix to run these tests continuously, the result is an automatic end-to-end solution that tests systems as any other code, avoiding regressions and enabling Continuous Delivery ( – automation all the way from source to production.

A more detailed example can be found in my continuous-delivery project at GitHub (

New release of librarian puppet

Puppet Labs logoI’ve been helping with the development of librarian-puppet, pushing upstream a lot of fixes we had made in the past and applying long outstanding pull requests in the project in order to get a release out, and finally you can get the (probably) last release before 1.0.0 which should be stable enough for day to day use.

Besides bug fixes probably the best feature is the ability of reusing the Modulefile dependencies by creating the simplest Puppetfile, if you only need modules from the Puppet Forge

forge ""



The changelog


  • Issue #176 Upgrade to librarian 0.1.2
  • Issue #179 Need to install extra gems just in case we are in ruby 1.8
  • Issue #178 Print a meaningful message if puppet gem can’t be loaded for :git sources


  • Remove extra dependencies from gem added when 0.9.11 was released under ruby 1.8


  • Add modulefile dsl to reuse Modulefile dependencies
  • Consider Puppetfile-dependencies recursively in git-source
  • Support changing tmp, cache and scratch paths
  • librarian-puppet package causes an infinite loop
  • Show a message if no versions are found for a module
  • Make download of tarballs more robust
  • Require open3_backport in ruby 1.8 and install if not present
  • Git dependencies in both Puppetfile and Modulefile cause a Cannot bounce Puppetfile.lock! error
  • Better sort of github tarball versions when there are mixed tags starting with and without ‘v’
  • Fix error if a git module has a dependency without version
  • Fix git dependency with :path attribute
  • Cleaner output when no Puppetfile found
  • Reduce the number of API calls to the Forge
  • Don’t sort versions as strings. Rely on the forge returning them ordered
  • Pass –module_repository to puppet module install to install from other forges
  • Cache forge responses and print an error if returns an invalid response
  • Add a User-Agent header to all requests to the GitHub API
  • Convert puppet version requirements to rubygems, pessimistic and ranges
  • Use librarian gem

Installing RVM and multiple ruby versions with Puppet

rvm_logoWith the latest version of the Puppet RVM module it is even easier to install multiple versions of Ruby

# install rubies from binaries
Rvm_system_ruby {
  ensure     => present,
  build_opts => ['--binary'],

# ensure rvm doesn't timeout finding binary rubies
# the umask line is the default content when installing rvm if file does not exist
file { '/etc/rvmrc':
  content => 'umask u=rwx,g=rwx,o=rx
                     export rvm_max_time_flag=20',
  mode    => '0664',
  before  => Class['rvm'],

class { 'rvm': }
rvm::system_user { 'vagrant': }
rvm_system_ruby {
    default_use => true;

Hiera can also be used to define what rubies to install, making the Puppet code even less verbose

class { 'rvm': }
# rvm::system_user no longer needed
# rvm_system_ruby no longer needed

The equivalent hiera yaml configuration to the previous example

    default_use: true
  '2.0': {}
  'jruby-1.7': {}

  - vagrant

Continuous Delivery with Maven, Puppet and Tomcat – Video from ApacheCon NA 2013

Apachecon NA 2013A little bit late but finally the video from my session at ApacheCon Portland is available. That was the first version of the talk that I just gave at Agile testing Days which unfortunately was not recorded.

Continuous Integration, with Apache Continuum or Jenkins, can be extended to fully manage deployments and production environments, running in Tomcat for instance, in a full Continuous Delivery cycle using infrastructure-as-code tools like Puppet, allowing to manage multiple servers and their configurations.

Puppet is an infrastructure-as-code tool that allows easy and automated provisioning of servers, defining the packages, configuration, services,… in code. Enabling DevOps culture, tools like Puppet help drive Agile development all the way to operations and systems administration, and along with continuous integration tools like Apache Continuum or Jenkins, it is a key piece to accomplish repeatability and continuous delivery, automating the operations side during development, QA or production, and enabling testing of systems configuration.

Traditionally a field for system administrators, Puppet can empower developers, allowing both to collaborate coding the infrastructure needed for their developments, whether it runs in hardware, virtual machines or cloud. Developers and sysadmins can define what JDK version must be installed, application server, version, configuration files, war and jar files,… and easily make changes that propagate across all nodes.

Using Vagrant, a command line automation layer for VirtualBox, they can also spin off virtual machines in their local box, easily from scratch with the same configuration as production servers, do development or testing and tear them down afterwards.

We will show how to install and manage Puppet nodes with JDK, multiple Tomcat instances with installed web applications, database, configuration files and all the supporting services. Including getting up and running with Vagrant and VirtualBox for quickstart and Puppet experiments, as well as setting up automated testing of the Puppet code.

Infrastructure testing with Jenkins, Puppet and Vagrant at Agile Testing Days

agiletdThis week I’m in Postdam/Berlin giving a talk Infrastructure testing with Jenkins, Puppet and Vagrant at Agile Testing Days. Showing examples of using Puppet, Vagrant and other tools to implement a source code to production continuous delivery cycle.

Slides are up in SlideShare, and source code is available at GitHub.

Extend Continuous Integration to automatically test your infrastructure.

Continuous Integration can be extended to test deployments and production environments, in a Continuous Delivery cycle, using infrastructure-as-code tools like Puppet, allowing to manage multiple servers and their configurations, and test the infrastructure the same way continuous integration tools do with developers’ code.

Puppet is an infrastructure-as-code tool that allows easy and automated provisioning of servers, defining the packages, configuration, services, … in code. Enabling DevOps culture, tools like Puppet help drive Agile development all the way to operations and systems administration, and along with continuous integration tools like Jenkins, it is a key piece to accomplish repeatability and continuous delivery, automating the operations side during development, QA or production, and enabling testing of systems configuration.

Using Vagrant, a command line automation layer for VirtualBox, we can easily spin off virtual machines with the same configuration as production servers, run our test suite, and tear them down afterwards.

We will show how to set up automated testing of an application and associated infrastructure and configurations, creating on demand virtual machines for testing, as part of your continuous integration process.

Testing Puppet and Hiera

Puppet Labs logoAt MaestroDev we have been using Puppet 3 for a quite some time now, and one of the main reasons to upgrade from Puppet 2.x was the ability of using Hiera as a data backend for all the variables that customize the different vms. We don’t have a lot of machines but pretty much all of them have some difference so Hiera allows us to have the same manifests and modules apply to all the machines by just using different parameters in each server.

But testing Hiera is not that simple. With rspec-puppet you can test each class by passing parameters, but how can you test a class that calls another class and so on, and at some point there you need to inject a parameter?

Well, this is possible with the hiera-puppet-helper gem you can stub the hiera data backend

source ''

group :rake do
gem 'puppet'
gem 'rspec-puppet'
gem 'hiera-puppet-helper'
gem 'rake'
gem 'puppetlabs_spec_helper'
require 'puppetlabs_spec_helper/module_spec_helper'
require 'hiera-puppet-helper/rspec'
require 'hiera'
require 'puppet/indirector/hiera'

# config hiera to work with let(:hiera_data)
def hiera_stub
  config = Hiera::Config.load(hiera_config)
  config[:logger] = 'puppet' => config)

RSpec.configure do |c|
  c.mock_framework = :rspec

  c.before(:each) do
    Puppet::Indirector::Hiera.stub(:hiera => hiera_stub)


And then you can use let(:hiera_data) to inject any parameters automatically into the puppet classes from your rspec tests.

require 'spec_helper'

describe 'mymodule::myclass' do

let(:hiera_data) {{
  'mymodule::myclass::myparam' => 'myvalue'

it { should contain_class('mymodule::myclass').with_myparam('myvalue') }

Check out a full module using hiera-puppet-helper at maestro_nodes.

PuppetConf video: How to Develop Puppet Modules

How to Develop Puppet Modules. From Source to the Forge With Zero Clicks (slides)

Puppet Modules are a great way to reuse code, share your development with other people and take advantage of the hundreds of modules already available in the community. But how to create, test and publish them as easily as possible? now that infrastructure is defined as code, we need to use development best practices to build, test, deploy and use Puppet modules themselves.

Three steps for a fully automated process

  • Continuous Integration of Puppet Modules
  • Automatic release and upload to the Puppet Forge
  • Deploy to Puppet master

More about PuppetConf in my previous entry.
